Push Pin & Bracket Systems

Home 넸 Push Pin & Bracket Systems

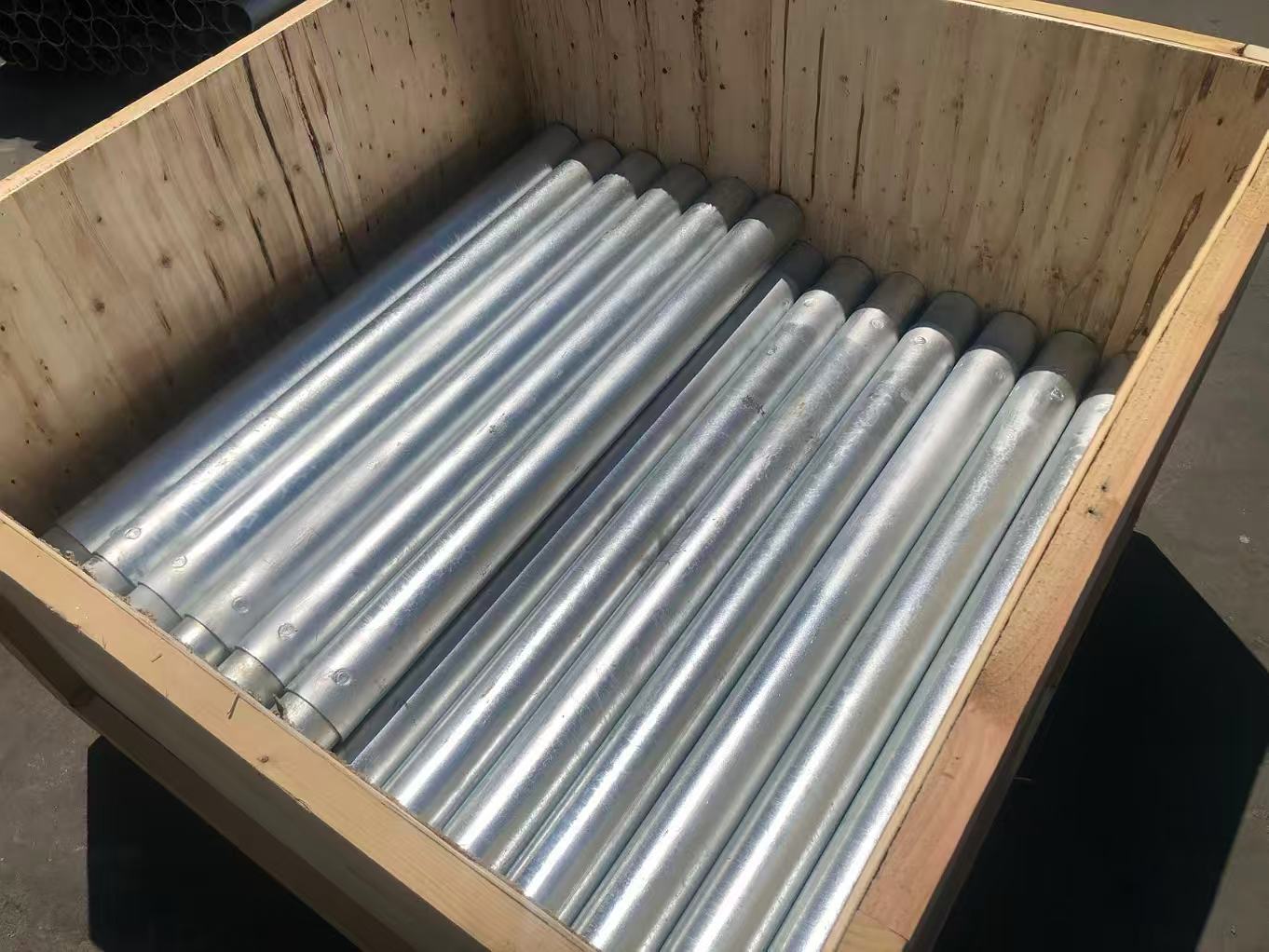

Push Pin Pipe

Material: GB Q355B, in accordance with ASTM A572 Gr. 50
Dimension:

▶	Pipe: Accept customization
	■ Outer Diameter: 76mm
	■ Wall Thickness: 3.5mm
	■ Length: 991mm

Surface finished: Hot dip galvanizing, in accordance with ASTM A123/EN ISO 1461 standards for hot-dip zinc coatings.

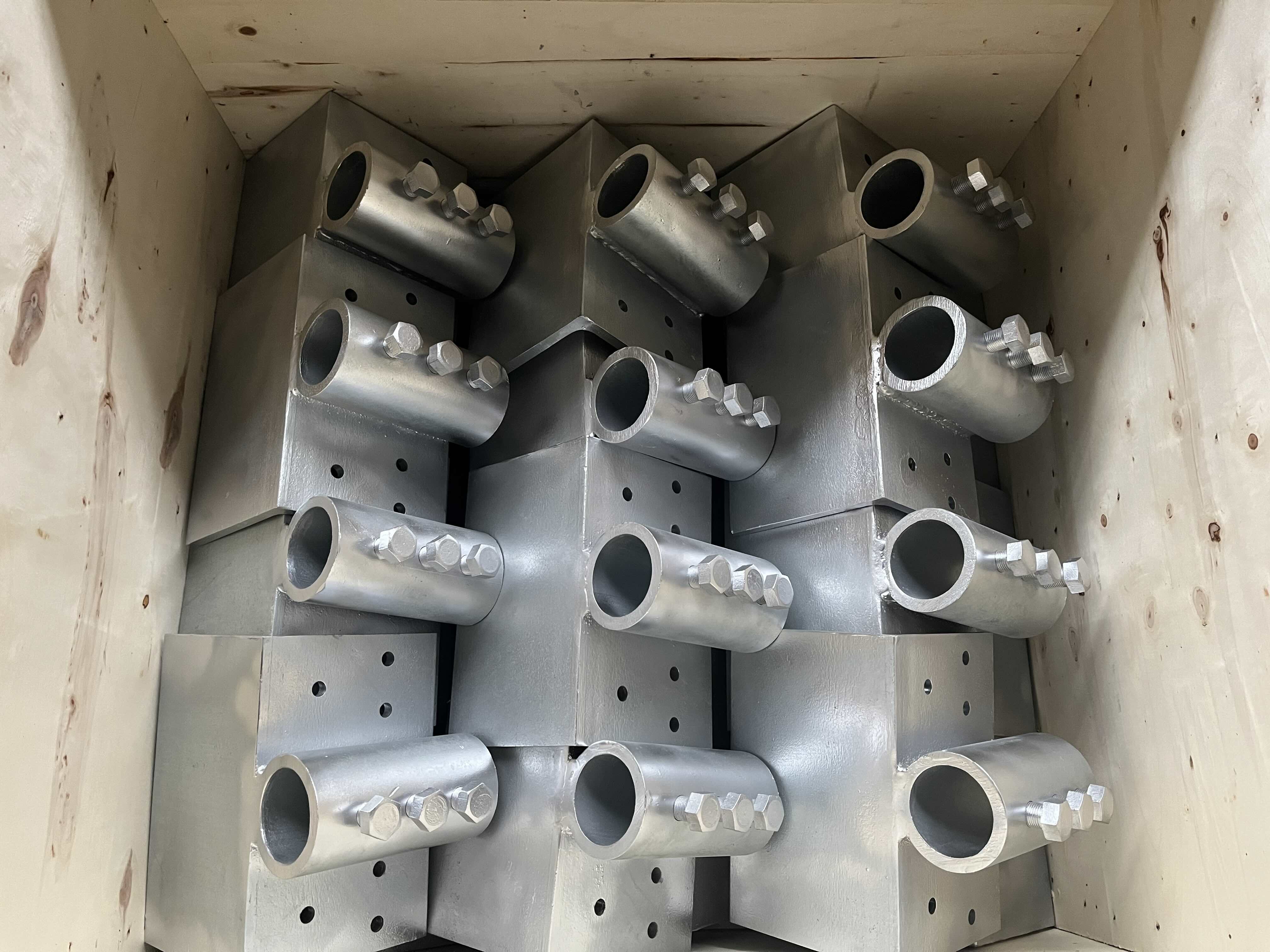

Angle Braket

▶	Bracket:
	■ Material: Q235B, in accordance with ASTM A36
	■ Size: 200200305*14mm
▶	Pipe:
	■ Material: Q355B, in accordance with ASTM A572 Gr. 50
	■ Size: 10212200mm

Each 3 fixed Bolts

Surface finished: Hot dip galvanizing, in accordance with ASTM A123/EN ISO 1461 standards for hot-dip zinc coatings.

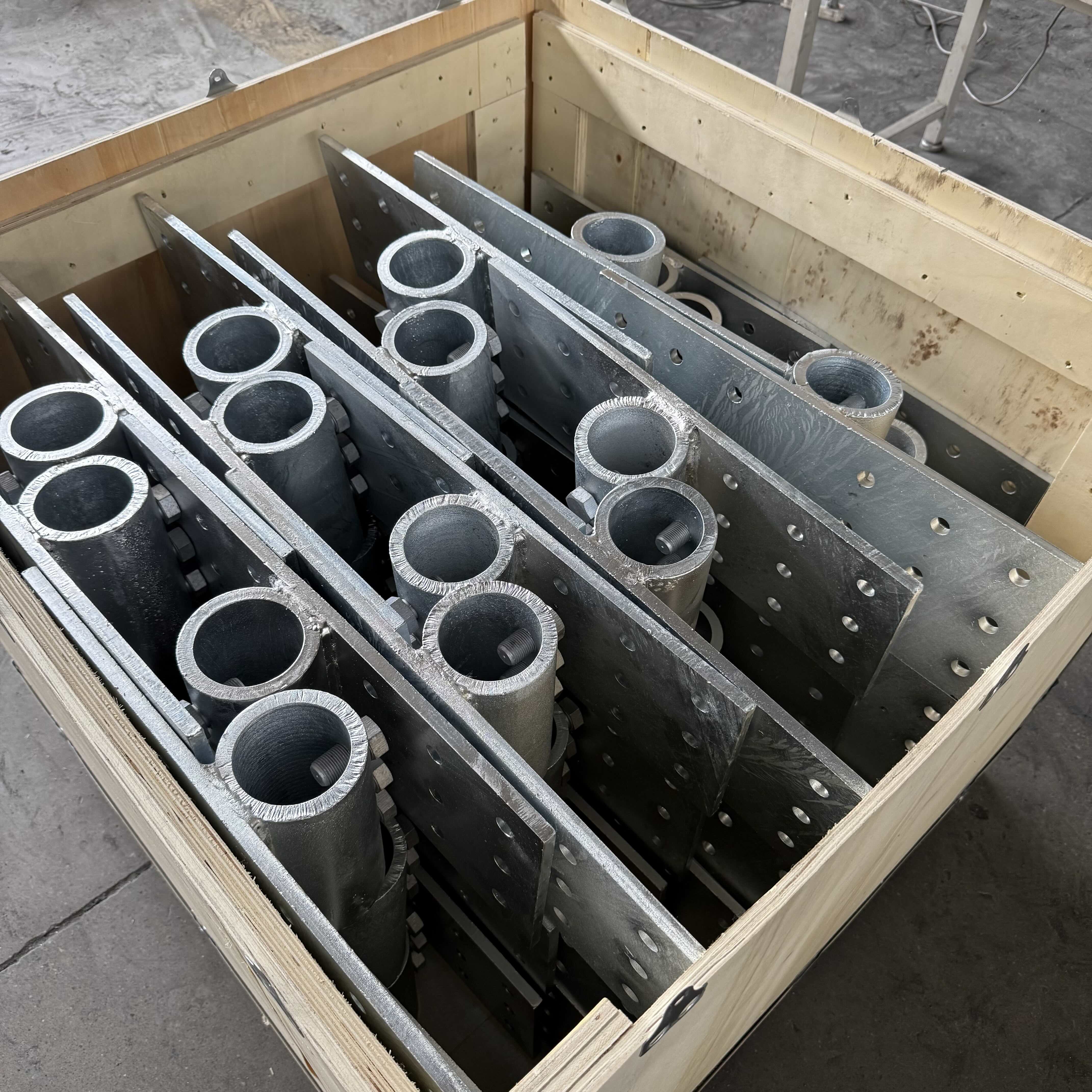

Plate Bracket

▶	Plate:
	■ Material: Q235B, in accordance with ASTM A36
	■ Size: 20053312mm
▶	Pipe:
	■ Material: Q355B, in accordance with ASTM A572 Gr. 50
	■ Size: 10212200mm

Each 3 fixed Bolts

Surface finished: Hot dip galvanizing, in accordance with ASTM A123/EN ISO 1461 standards for hot-dip zinc coatings.

Gusset Bracket

▶	Bracket:
	■ Material: Q235B, in accordance with ASTM A36
	■ Size: 200200305*14mm
▶	Pipe:
	■ Material: Q355B, in accordance with ASTM A572 Gr. 50
	■ Size: 10212200mm

Each 3 fixed Bolts

Surface finished: Hot dip galvanizing, in accordance with ASTM A123/EN ISO 1461 standards for hot-dip zinc coatings.
